DIY PVC Stick Feed (holds 18 rounds)


  • Please log in to reply
17 replies to this topic

#1 kingJurzy

kingJurzy

    OFFICIAL TechPB's best member 2012

  • Members
  • PipPipPipPipPipPipPipPip
  • 9,071 posts
  • Gender:Male
  • Location:Bay Area, California


Posted 14 May 2013 - 12:03 AM

So I got the idea to make a stick feed for my friend and I due to him having money issues and for me just for shens.

My inspiration came from get.lit.up!
Spoiler
So after this I decided to make my own out of PVC.

The build starts out with a 12 foot long 3/4 inch PVC pipe. It also needs a 3/4th inch and a 3/4th inch cap just so the balls do not fly out while I am diving.

Posted Image



First off I cut the pipe to size to 10 inches:

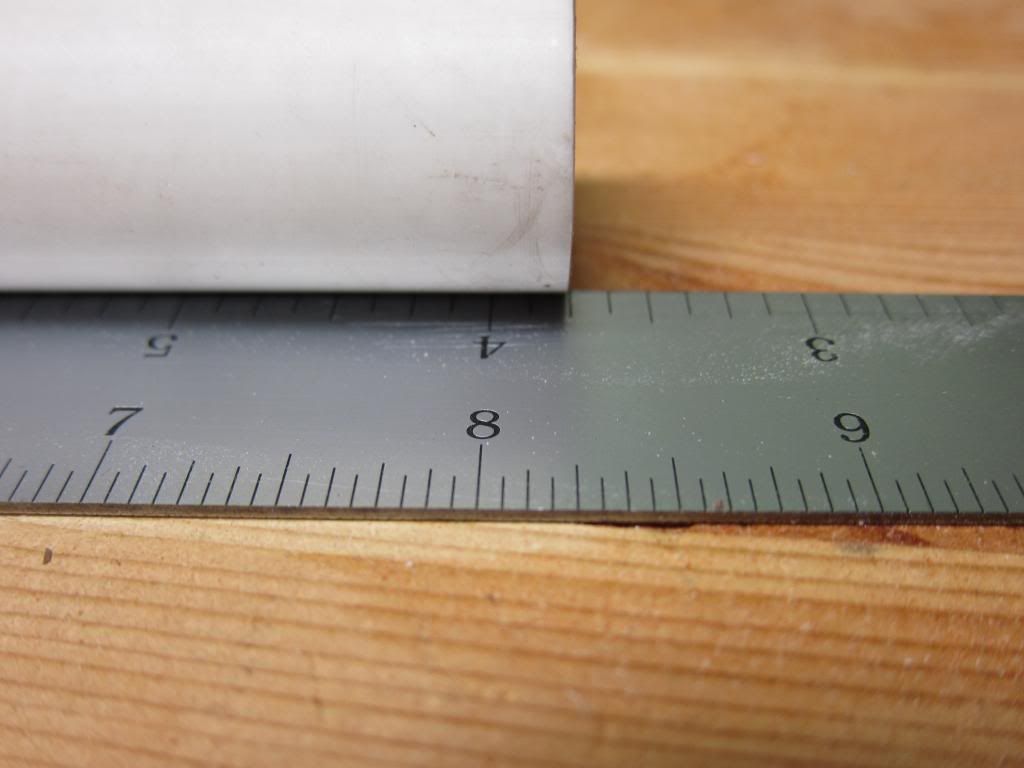

Posted Image
Posted Image

Next I figured out that the pipe was too thick to fit in the feedneck so I had to sand it down to make it fit.
Posted Image

Posted Image

Comparison of sanded down pipe that goes into the feedneck and a non sanded down pipe:
Posted Image


I started with 60 grit and moved my way up to 400 grit

Posted Image

After it fit in snugly I eyeballed where I should make the next cut to make the 45 degree elbow to make it somewhat flush.

Posted Image

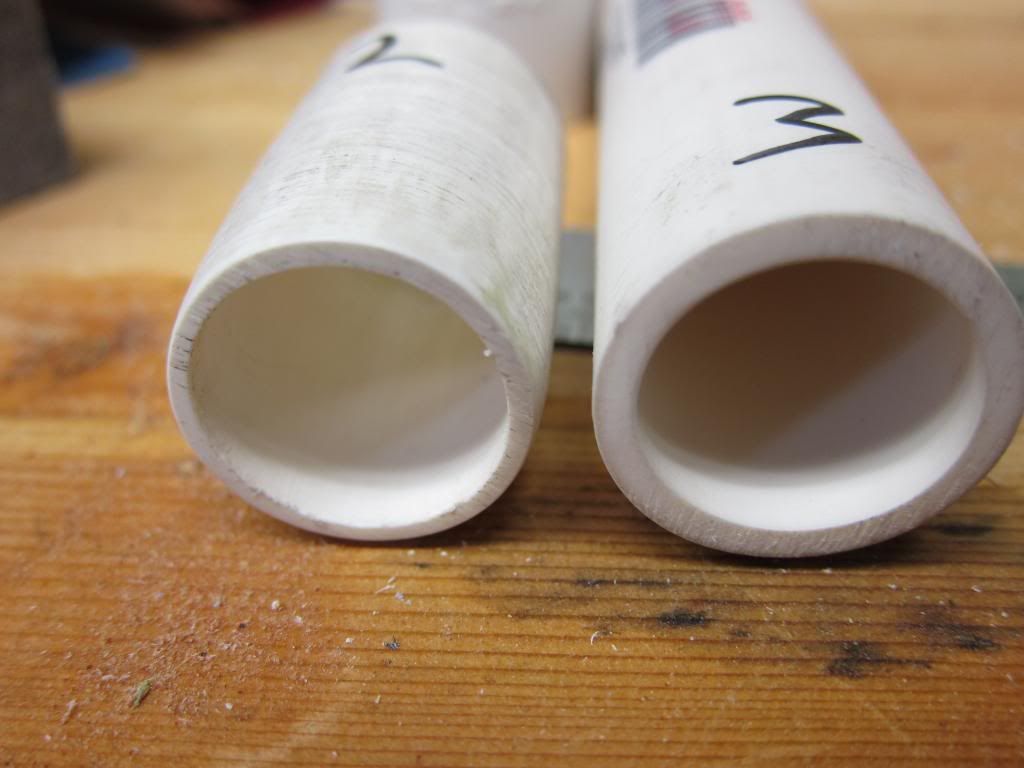

Next I started to sand the inside of the pipe to make it smooth and flush when it is in the elbow so the balls can just roll through and not bump into the wall. Here is the comparison of a no sanded down pipe.

Posted Image

Posted Image

Posted Image

Posted Image


It is really smooth on the wall of the elbow, the picture does not do it justice.

Posted Image


The smallest piece that goes into the feedneck:
Posted Image

Next to measure the top part of the stick:
Posted Image

Posted Image


Top most part sanded down on the inside so I can fit a 10 round tube into there snugly:

Posted Image

Drilled a hole in the cap so I can run Paracord bracelet through it to tie to the stick so I do not lose the cap when I am in a tangle:
Posted Image
Posted Image
Posted Image
Posted Image

Posted Image




Finished product:

Posted Image

Posted Image

It is 9 inches over where the top of the marker is:
Posted Image

11 inches in length:
Posted Image




WHERE TO SHAVE:

Posted Image

#1 gets shaved on the outside of the pipe to fit the marker

#2 gets shaved on the inside of the pipe to get it flush with the wall on the elbow

#3 is not touched

#4 is shaved on the inside to get the 10 round tube to fit inside the tube snugly
