Talking DIY making a pinokio stock board to a pboard


  • Please log in to reply
1 reply to this topic

#1 juit

juit

    Member

  • Members
  • PipPip
  • 136 posts
  • Gender:Male
  • Location:Texas

Posted 17 October 2013 - 08:01 PM

PROS:

if you have electronic skills this mod is almost free

you wont loose your board for days

CONS:

now if you do this pinokio will void your warranty and if you mess up the board, you will need to buy a

new one so this mod is up to you

will drain batts faster



you need to remove the voltage regulator chip

use a shop vac to remove the weld

then use a wire to bridge it

this will allow the full batt voltage to the motor

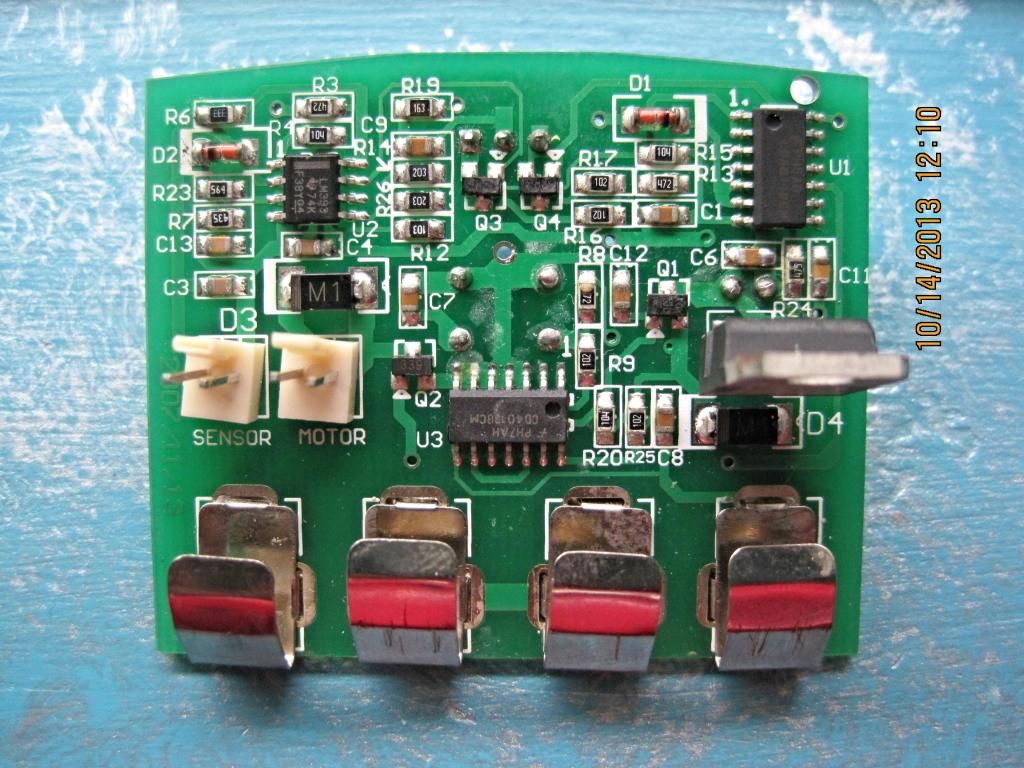

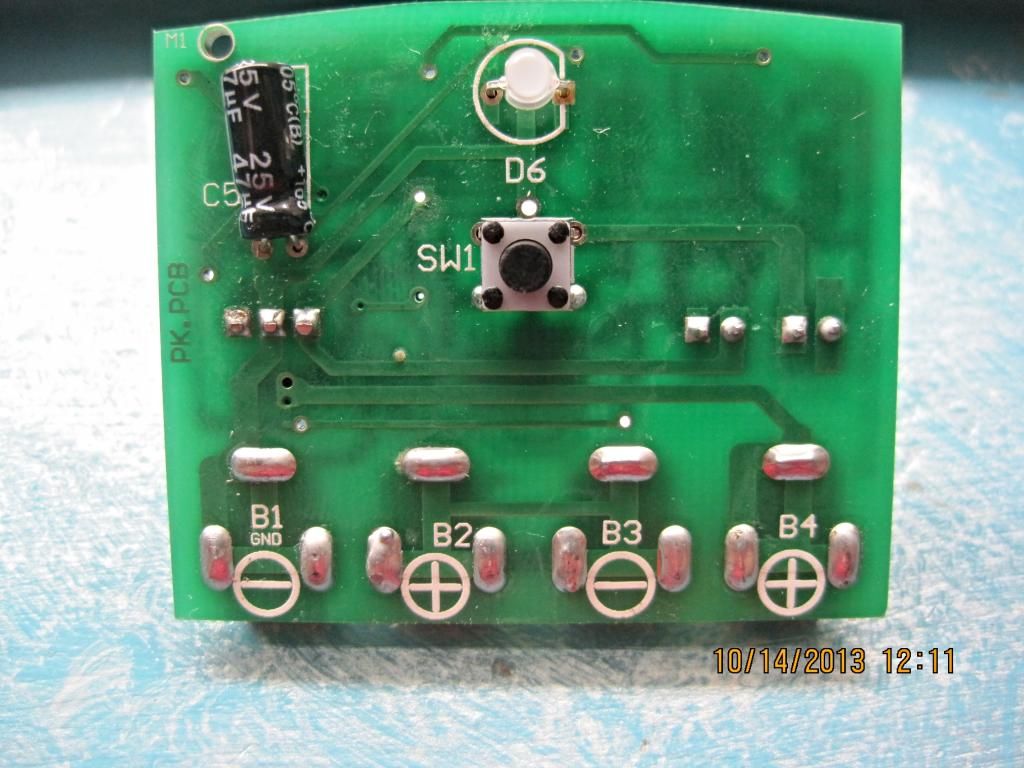

stock board pics



17 secnds 200 reballs

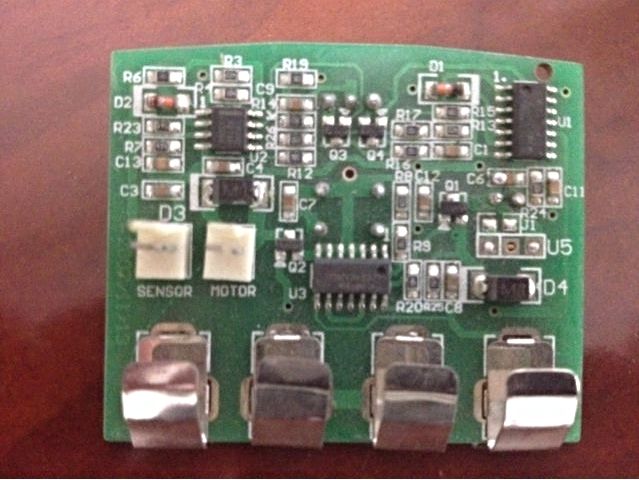

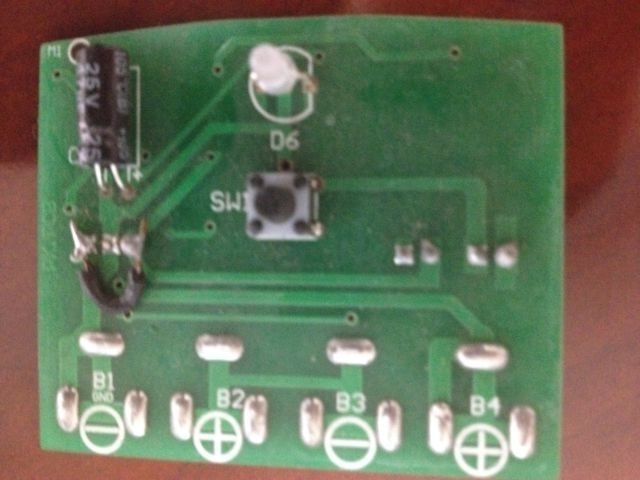

p board pics



9 seconds reballs


I hope this helps

I love this sport!

#2 junits15

junits15

    And now I am become death, destroyer of worlds

  • Members
  • PipPipPipPipPip
  • 1,813 posts
  • Gender:Male
  • Location:Back in the USSR

Posted 06 November 2013 - 10:25 AM

I'd advise against this, you're basically changing the amount of voltage the circuit receives. The purpose of a regulator isn't just to drop the voltage down from 18v it also serves to prevent any spikes and it limits current draw. This allows consistent feeding of balls by ensuring constant motor speed. By removing that regulator you're drastically shortening the life of your motors and board.
I would assume that a PBoard uses different components


Edited by junits15, 06 November 2013 - 10:27 AM.
