karnivor regs

12 September 2012 - 05:16 PM

i have a karni with the stock hpr and lpr

how are the adjustments on the regs

how to install a dm/nt critical trigger

31 January 2012 - 08:26 PM

Alright i will explain the process of installing the critical trigger in your dm or nt


1.lay down a mat or towel to work on then remove the barrel reg and grips to access the frame screws and wire connections
Posted Image]

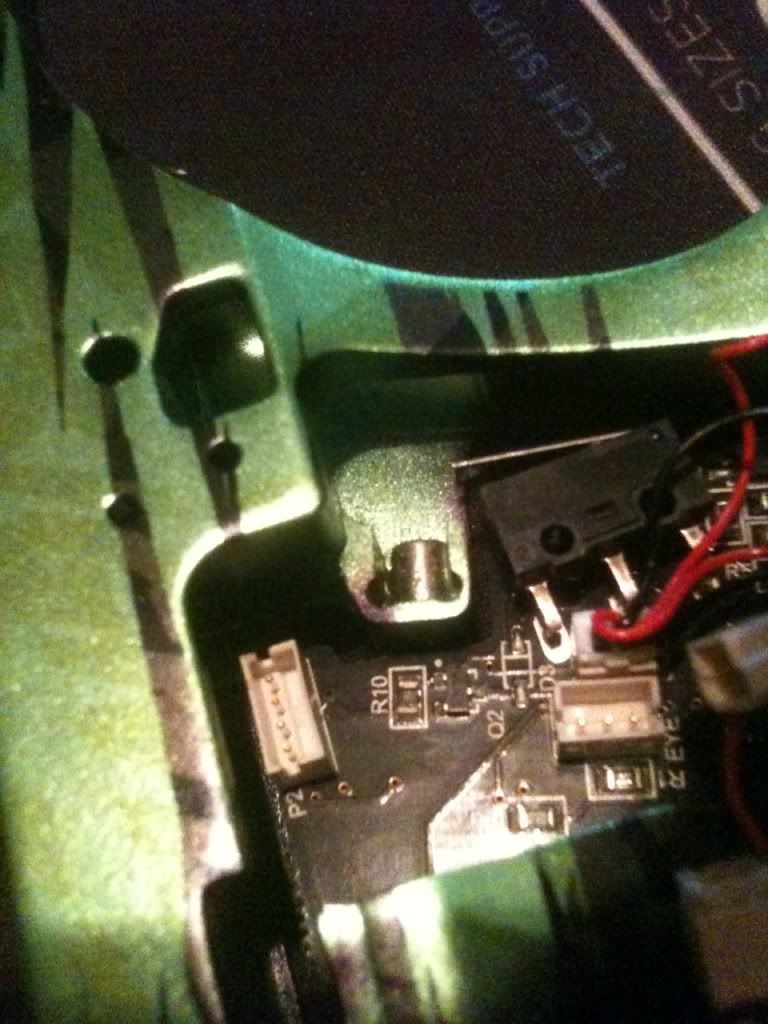

2. Next disconnect the eyes and noid from the board then remove the rear screw(all year dm/nts) and depending on the year dm loosen the front screw and slide the frame off(older dms require you to remove the front screw all the way)
Posted Image

3.Now that the frame is free remove the trigger pin and adjustment screws the stock trigger can be removed now
Posted Image

4. now you should install the frame magnet that came with the critical trigger (make sure that the magnet repels the one on the adjustment Screw before you glue it in place)
Posted Image

5. now install the critical trigger and the trigger pin just reverse of step 3
Posted Image

5a.If the trigger drags at all on the frame you may be required to file the frame or trigger down(i have a tiger lime dm12 and with the mutli layer anno it made the space for the trigger alot tighter then a normal color scheme would be

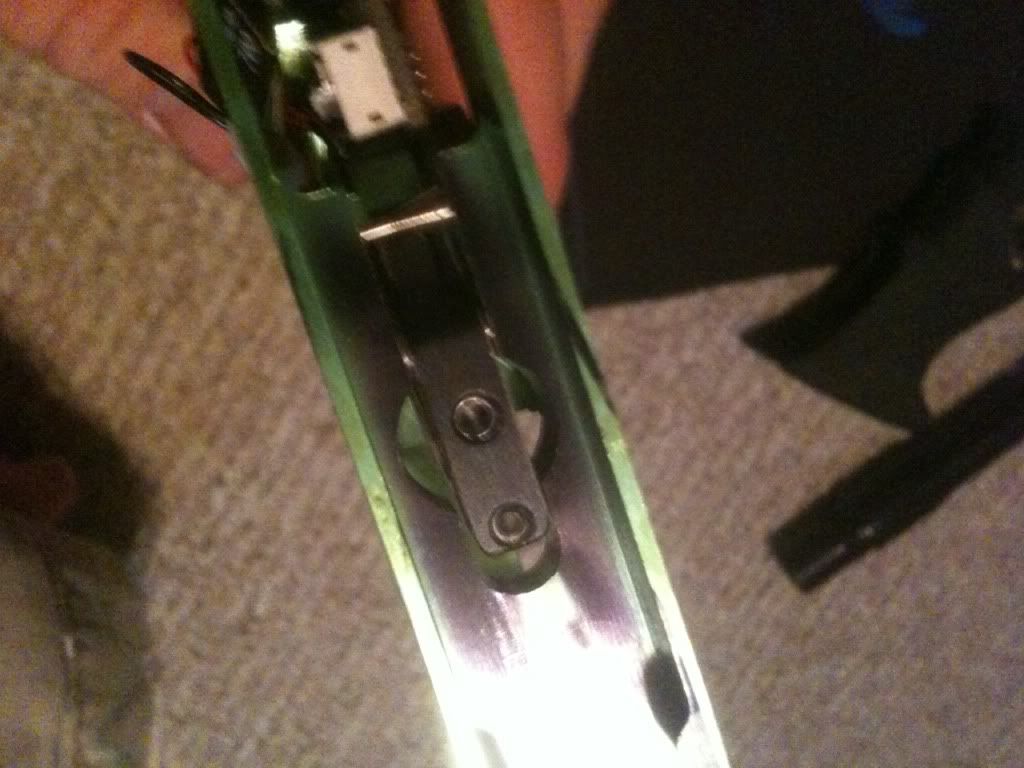

6. re install the trigger adjustment screws (now is the time to adjust the activation point on the trigger it is located on the top of the trigger and cannot be reach when the marker is reassembled)
Posted Image

For nt owners only

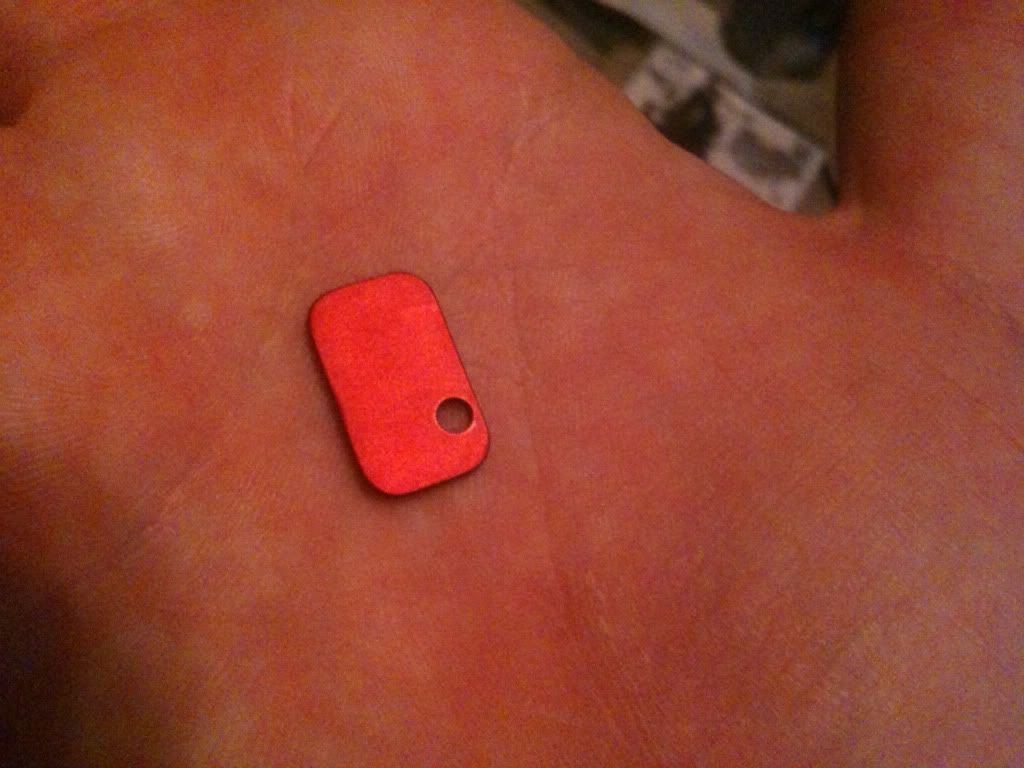

There is a little red plate that came with the trigger it is to be installed where the first orange wire holder is on the underside of the body using the stock screw
Posted Image

7.re assemble the frame and body do not crush or pinch any wires

8.make the fine adjustments to the trigger to make the feel to your liking before installing the grips

9.Go mow faces with your machine gun
Posted Image

how to install a dm critical trigger

28 January 2012 - 11:30 PM

Alright i will explain the process of installing the critical trigger in your dm or nt


1.lay down a mat or towel to work on then remove the barrel reg and grips to access the frame screws and wire connections
Posted Image]

2. Next disconnect the eyes and noid from the board then remove the rear screw(all year dm/nts) and depending on the year dm loosen the front screw and slide the frame off(older dms require you to remove the front screw all the way)
Posted Image

3.Now that the frame is free remove the trigger pin and adjustment screws the stock trigger can be removed now
Posted Image

4. now you should install the frame magnet that came with the critical trigger (make sure that the magnet repels the one on the adjustment Screw before you glue it in place)
Posted Image

5. now install the critical trigger and the trigger pin just reverse of step 3
Posted Image

5a.If the trigger drags at all on the frame you may be required to file the frame or trigger down(i have a tiger lime dm12 and with the mutli layer anno it made the space for the trigger alot tighter then a normal color scheme would be

6. re install the trigger adjustment screws (now is the time to adjust the activation point on the trigger it is located on the top of the trigger and cannot be reach when the marker is reassembled)
Posted Image

For nt owners only
There is a little red plate that came with the trigger it is to be installed where the first orange wire holder is on the underside of the body using the stock screw
Posted Image

7.re assemble the frame and body do not crush or pinch any wires

8.make the fine adjustments to the trigger to make the feel to your liking before installing the grips

9.Go mow faces with your machine gun
Posted Image

just got a geo+

04 January 2012 - 06:33 PM

can some one explain what the upgrades were that made the geo into the geo plus and what do they do

shim question

02 January 2012 - 10:46 PM

is it save to remove them all
